Drywall

Drywall screw is a specialized self-tapping screw with a cylindrical shaft and Philips Bugle Head rather than a slotted head, which provides additional control for installers. These screws can handle multiple fastening and unfastening throughout their product lifecycle.


FEATURES

  • Being fairly thin & curve of bugle head helps PREVENT DAMAGE of DRYWALL
  • Black Phosphate coating increases CORROSION RESISTANCE & DURABILITY
  • Screw fastens flush with the surface, giving a SMOOTH & EVEN FINISH
  • Sharp point assists FAST & EASY DRILLING
  • Relatively ECONOMICAL

APPLICATIONS

  • Securing drywall sheets to ceiling joists, wall studs, metal tracks and more
  • Fastening iron joints and wooden products

CRITICAL INSTALLATION INSTRUCTIONS

  • Clean any metal shavings build-up on the bit after-which attach a screw with screwdriver bit.
  • Slow press trigger till drilling tip of the screw rests against metal. Increase speed when screw aligns to center.

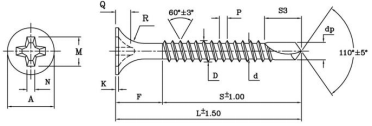

SPECIFICATIONS

PARAMETER SPECIFICATION
Diameter Range 3.5mm (#6)
Length Range 13mm – 75mm
Coating Black Phosphated
Thread Type Fine Thread
Fitting Accessory Screwdriver Bit PH2 (S2 x 65mm)
Drilling Capacity 0.70-1.00mm
